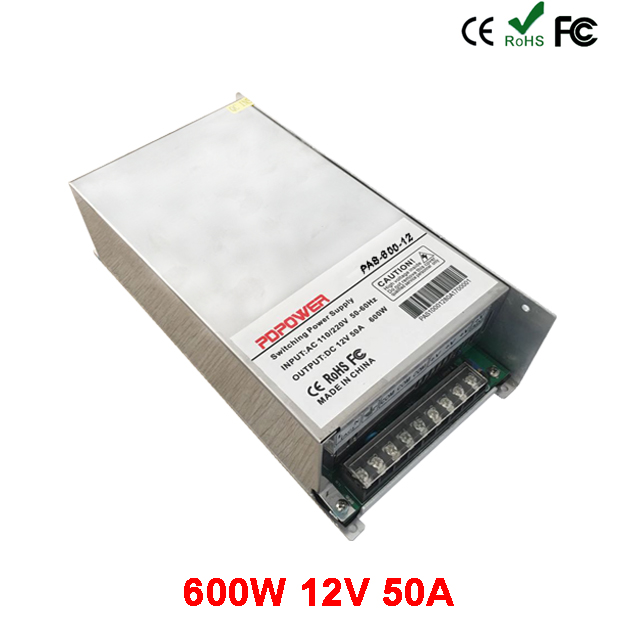

Model No.:PAS-600-12

Product details:
Model number: PAS-600-12
Brand name: PDPower
Country of origin: Shenzhen
Key specifications/special features:

• AC input selectable by switch
• AC input voltage range: 110/220V AC, 50-60Hz
• AC inrush current: 30-75A
• Output voltage: 12V
• Output current: 50A
• Leakage current: <0.7Ma/230V AC
• DC adjustment range: ±10%
• Over load protection: 105-135% rated output power
• Over-voltage protection: 105-135% hiccup mode, auto-recovery
• Withstand voltage:
• I/P-O/P: 3kV AC
• I/P-FG: 1.5kV AC
• O/P-F/G: 0.5kV AC
• Working temperature: -20 to +70°C
• Certifications: CE, RoHS Directive-compliant, FCC
• Output type: DC

• FOB port: Shenzhen
• Dimensions per unit: 250*135*70mm
• Weight per unit: 1.2kg
• Lead-time: 5-30 days

• Middle East/Africa
• North America
• Eastern Europe
• Asia
• Australasia

• Payment terms: T/T in advance

• Enough power, 100% loading test and aging test
• 2 years guarantee/warranty
• International approvals
• Competitive price
• Quality approvals
• Reputation
• Small orders are accepted

  MODEL	PAS-600-12
  OUTPUT	DC VOLTAGE	12V
  	RATED CURRENT	50A
  	CURRENT RANGE	0~50A
  	RATED POWER	600W
  	RIPPLE & NOISE (max.)	200mVp-p
  	VOLTAGE TOLERANCE	+- 1.0%
  	LINE REGULATION	+- 0.5%
  	LOAD REGULATION	+- 1.0%
  	SETUP, RISE TIME	1000ms, 60ms/230VAC 1500ms, 60ms/115VAC at full load
  	HOLD UP TIME(Typ.)	20ms/230VAC 20ms/115VAC at full load
  INPUT	VOLTAGE RANGE	100 ~132VAC/180~264VAC by switch
  	FREQUENCY RANGE	50 ~ 60Hz
  	EFFICIENCY (Typ.)	82%
  	AC CURRENT (Typ.)	8.5A/115VAC 4.5A/230VAC
  	INRUSH CURRENT (Typ.)	50A/115VAC 50A/230VAC
  	LEAKAGE CURRENT	<3.0mA / 240VAC
  PROTECTION	OVERLOAD	105 ~ 135% rated output power
  		Protection type : Hiccup mode, recovers automatically after fault condition is removed
  	OVER VOLTAGE	13.8 ~ 14.5V
  		Protection type : Hiccup mode, recovers automatically after fault condition is removed
  ENVIRONMENT	WORKING TEMP.	-20 ~ +60 (Refer to "Derating Curve")
  	WORKING HUMIDITY	20 ~ 90% RH non-condensing
  	STORAGE TEMP., HUMIDITY	-20 ~ +85 , 10 ~ 95% RH
  SAFETY	SAFETY STANDARDS	CE Approved
  	WITHSTAND VOLTAGE	I/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
  OTHERS	DIMENSION	250*135*70mm
  NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
